QC-TW
Quick Connect Tube Nut Wrench Blades
Brimatco Tube Nut Wrench Blades are designed for split socket in-line applications such as brake lines, hydraulic fittings, and fuel system connections. Available in light, heavy, and extra heavy duty special configurations.
Multiple Drives
For split socket in-line applications. Torque up to 61 ft lbs / 83 NM
Specifications
* More than 3 idler gears available per customer request

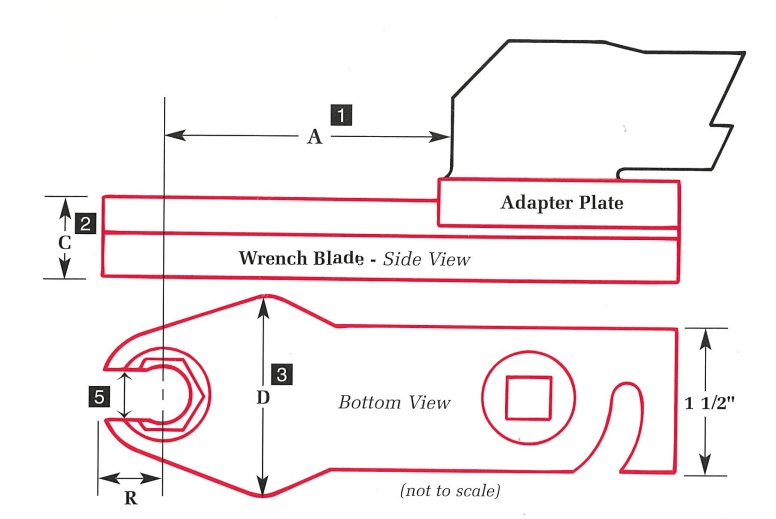

QCEH-TW - SP
| Socket Sizes | Sq. Dr. | Max Torque FT/LBS | Max Torque N.M. | "A" | "R" | "C" | "D" |
|---|---|---|---|---|---|---|---|
| 3/8 thru 3/4 9mm thru 20mm | 1/2 | 61 | 83 | 2.900 | 0.720 | 0.937 | 2.150 |

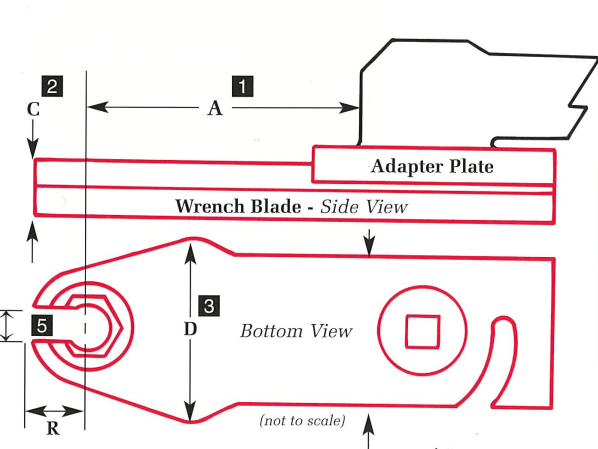

QCH-TW
| Socket Sizes | Sq. Dr. | Max Torque FT/LBS | Max Torque N.M. | "A" | "R" | "C" | "D" |
|---|---|---|---|---|---|---|---|
| 5/16 thru 3/4 8mm thru 19mm | 3/8 | 22 | 29 | 2.674 | 0.605 | 0.562 | 1.860 |
QCL-TW
| Socket Sizes | Sq. Dr. | Max Torque FT/LBS | Max Torque N.M. | "A" | "R" | "C" | "D" |
|---|---|---|---|---|---|---|---|
| 1/4 thru 9/16 7mm thru 14mm | 1/4 | 110 | 12 | 1.718 | 0.437 | 0.500 | 1.575 |
Special Featured Options
- 1"A" dimension can be modified to any length to suit existing application (increasing or decreasing the number of idler gears).
- 2Thickness can be modified (slimmed down if necessary for clearance above fastener).
- 3Width dimensions can be contoured or modified to suit difficult access applications.
- 4Sockets can be manufactured to any length desired for recessed or difficult reach applications.
- 5Tube diameter as requested.
- 6Standard sockets for tube nut wrench blades are shouldered 6 point hex unless otherwise specified.
Socket Drive Choices
- Fractional Hex
- Fractional 12 point
- Millimeter Hex
- Shouldered
- Thru
- Threaded
- Spline
- Allen Drives
- Square Drives
- Male Drives
- Hex Key
- Solid Core Magnetic
